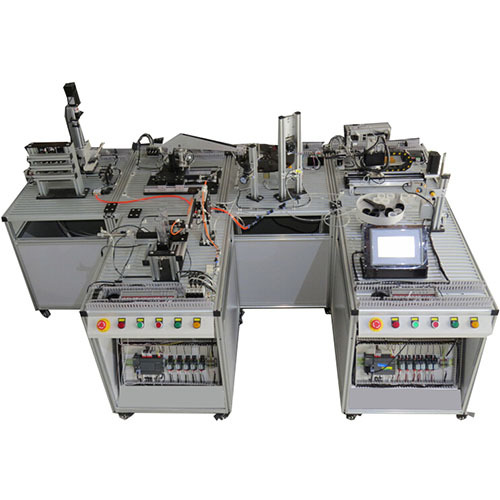

AFM024 Modular Product System Mechatronics Trainer Teaching Equipment Didactic Equipment1. Overview
Modular training system is composed of distribution station, testing station, processing station, handling station, assembly station, sorting and storage station. The system is installed in the aluminum board with grooves, each stations can be combined easily to build an automatic product line. The components in the stations are modular, it is easy to build , disassembly, and maintain, you can choose any stations to combine a new system.
2. Technical Parameter
1) Control cabinet main circuit power supply: single phase AC220V ± 10% 50Hz
2) Control cabinet control loop power supply: DC24V
3)Temperature: -10 ℃ ~ 40 ℃,
4) Environmental humidity: ≤ 90% (25 ℃)
5) Air supply pressure: 0.5 ~ 0.6Mpa
6) Machine capacity: ≤ 1KVA
7) Dimension: length × width × height = 450mm × 790mm × 1103mm
We can make customer order according to your requirements.
