1 Specification

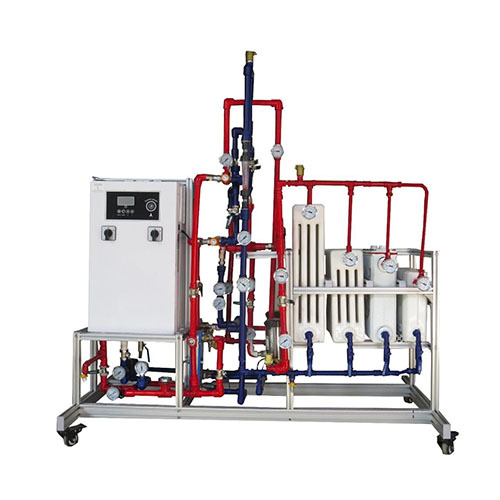

Function and operating behaviors of a modern heating system with digital heating controller
Four-way mixer and three-way mixer
Electric boiler
2 circulating pumps, 1 domestic water pump
4 different radiators and additional plate heat exchanger with shower system as domestic water consumer
Colored pipes indicate heating feed and return
Measurement of temperature, pressure and flow rate
Boiler, 4 stages: 6/9/12/15kW,
Max. Feed temperature: 95°C,
Water tank capacity: 16 ltr
Circulating pump 3 stages: 60W,
Max. Flow rate: 60ltr/min,
Max. Head: 4m
Domestic water pump: 20W, max. 640ltr/h, max. 0.14bar
Plate heat exchanger: 3kW, 10 plates
Measuring ranges: temperature: 3x 20...120°C / 2x 0...120°C / 2x 0...100°C / 4x 0...80°C, pressure: 8x 0...2.5bar, flow rate: 100...1000ltr/h, water meter: 2.5m³/h

Manual with theory and experiments
Dimension(LxWxH): 1500mmx900mmx1700mm
Weight: 300Kg
a. Heat pump system
b. Compressor : 1HP
c. Condenser : Air-cooled type
d. Evaporator: pin, Tube air-cooled type
e. Evaporator
f. Expansion Valve : manual type
g. Liquid receiver : 1/2HP
h. Accumulator : 1HP
i. Electronic valve : 3/8" nut clamp type
j. Manometer
k. Fitting nipple
l. Sight Glass
m. Electric control module: DC24V
n. Thermostat range: -50℃‾100℃
o. Geothermal system
-Ground unit chamber
-Water unit chamber
